[Taskin Okmen]

Thank you for replying,

I have attached the screenshot of the program running and my working environment (as practice1.zip) which I took from 23rd Hark seminar 2024 (https://drive.google.com/drive/folders/12HxHRWdB8zaqNRimXFqx-Q8kjEa0TXpY). You can also find in drive folder Ubuntu22.04_Native/tutorial.tar.gz

I couldn’t add the practice1.wav and tamago_rectf.zip because it exceeds the maximum file size. But it is the same as in hark drive folder(tutorial.tar.gz->/HARK_tutorial_2024/practice1/data).

• This reply was modified 2 weeks, 2 days ago by Taskin Okmen.

Attachments:

1. practice1.zip

[Taskin Okmen]

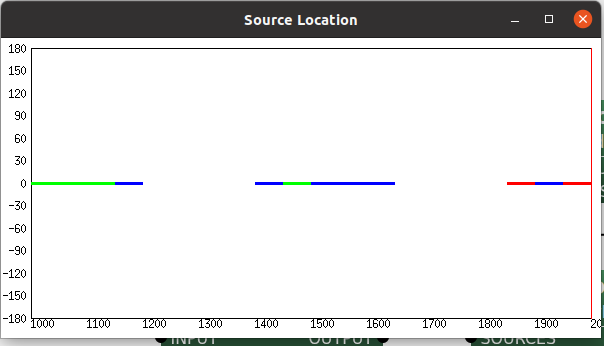

Hello, I am using HARK 3.5.0 on Ubuntu 20.04.6 and trying to run the offline sound source localization (SSL) example from the HARK 2024 tutorial practice 1 on hark website. I use the same files (practice1.wav, tamago_rectf.zip, practice1-1.n) but I get constant 0° azimuth on the source localization graph (I also attached the graph). Also here is my hark status log after stopping example:

“””
User Interrupt
2026-02-20 18:56:10,375 – hark-middleware – 29789 – INFO – Start HARK middleware:

2026-02-20 18:56:10,375 – hark-middleware – 29789 – INFO – network: practice1-1.n
2026-02-20 18:56:10,375 – hark-middleware – 29789 – INFO – process: local
2026-02-20 18:56:10,375 – hark-middleware – 29789 – INFO – toolbox: [‘/usr/local/lib/hark/toolbox’, ‘/usr/lib/hark/toolbox’]
2026-02-20 18:56:10,375 – hark-middleware – 29789 – INFO – args: []

name=HARKMW.PROCESS, type=string, value=local
name=HARKMW.TOPIC, type=string, value=local
name=RETRY, type=int, value=
name=TYPE, type=string, value=

name=HARKMW.PROCESS, type=string, value=local
name=HARKMW.TOPIC, type=string, value=local
name=VALUE, type=string, value=practice1.wav

2026-02-20 18:56:10,511 – hark-middleware – 29789 – INFO – No node class with name ‘LOOP0’ found

2026-02-20 18:56:10,511 – hark-middleware – 29789 – INFO – node_def.type: LOOP0, network_def: <harkmw.defs.network.NetworkDef object at 0x7fb43e08b070>

name=DEBUG, type=bool, value=false
name=HARKMW.PROCESS, type=string, value=local
name=HARKMW.TOPIC, type=string, value=local
name=MIN_ID, type=int, value=0
name=MIN_SRC_INTERVAL, type=float, value=30

name=PAUSE_LENGTH, type=float, value=1500
name=THRESH, type=float, value=34

name=HARKMW.PROCESS, type=string, value=local
name=HARKMW.TOPIC, type=string, value=local
name=LENGTH, type=int, value=512
name=WINDOW, type=string, value=CONJ
name=WINDOW_LENGTH, type=int, value=512

name=HARKMW.PROCESS, type=string, value=local
name=HARKMW.TOPIC, type=string, value=local
name=PLOT_TYPE, type=string, value=AZIMUTH
name=VERTICAL_RANGE, type=object, value=<Vector<int> -180 180>

name=WINDOW_LENGTH, type=int, value=1000
name=WINDOW_NAME, type=string, value=Source Location

name=ADVANCE, type=int, value=160
name=HARKMW.PROCESS, type=string, value=local
name=HARKMW.TOPIC, type=string, value=local
name=LENGTH, type=int, value=512
name=USE_WAIT, type=bool, value=true

name=A_CHAR_SCALING, type=float, value=1

name=A_MATRIX, type=string, value=tamago_rectf.zip
name=DEBUG, type=bool, value=false
name=ENABLE_EIGENVALUE_WEIGHT, type=bool, value=true
name=HARKMW.PROCESS, type=string, value=local
name=HARKMW.TOPIC, type=string, value=local
name=LENGTH, type=int, value=512
name=LOWER_BOUND_FREQUENCY, type=int, value=500
name=MANUAL_WEIGHT_SPLINE, type=object, value=<Matrix<float> <rows 2> <cols 5> <data 0.0 2000.0 4000.0 6000.0 8000.0 1.0 1.0 1.0 1.0 1.0> >

name=MANUAL_WEIGHT_SQUARE, type=object, value=<Vector<float> 0.0 2000.0 4000.0 6000.0 8000.0>
name=MAXNUM_OUT_PEAKS, type=int, value=-1
name=MAX_DEG, type=int, value=180
name=MIN_DEG, type=int, value=-180
name=MUSIC_ALGORITHM, type=string, value=SEVD
name=NUM_SOURCE, type=int, value=2
name=PERIOD, type=int, value=50

name=SAMPLING_RATE, type=int, value=16000
name=SPECTRUM_WEIGHT_TYPE, type=string, value=Uniform
name=TF_CHANNEL_SELECTION, type=object, value=<Vector<int> >
name=TF_INPUT_TYPE, type=string, value=FILE
name=UPPER_BOUND_FREQUENCY, type=int, value=2800
name=WINDOW, type=int, value=50
name=WINDOW_TYPE, type=string, value=FUTURE

Gtk-Message: 18:56:10.521: Failed to load module “canberra-gtk-module”

initialize
reading A matrix

72 srcs, 8 microphones, 512 points

done
“””

What I am missing? In log it says “No node class with name ‘LOOP0’ found” but have no problem executing the previous example practice 0 with my RASP LC which works fine and outputs the same warning. I also tried to change THRESHOLD and number of sound sources parameters but this didn’t change anything. What I am doing wrong? please help.

Attachments:

1.
